Modle Number:HL-C13
Product Name:Laser Tattoo Removal System HL-C13

Laser Tattoo Removal System...

  • 0086-13148703639

  • INQUIRY
  • DESCRIPTION
  • APPLICATION
  • PARAMETERS
  • Warning

    It will has radiation dangerous if wrong program control adjust or manipulate.

    Please read this manual carefully and became familiar with the safety requirements and operating process before using or operating the equipment.

    Take the key away to avoid dangerous after using.

    The machine must be operated by those people who have been trained.

    The machine can’t be repaired by unprofessional person.



    Electric security

    The high voltage (hundred volt) that is necessary for the Beauty equipment is dangerous to person.

    Avoid using the machine at inflammable anesthesia gas, air of mingle gas and oxygen, or nitrous oxide. Something such as, cotton thread, will be spontaneous combustion when it touches with oxygen due to the high temperature of normal operation. So make the disinfection and clean liquid absolutely evaporate before using the machine

    So please don’t install、debug or maintain the machine if you are not professional. Don’t use the Beauty equipment at some places where there are flammable and explosive goods, flammable and explosive goods such as gasoline、alcohol、kef、solvent、dryer etc, they must not be put or stored near the machine.



    Optical security

    Burning

    This is photoelectric equipment, may lead skin burn if misuse, so pls. operate it according to the user’s manual.

    Harm of reflection and straight irradiation to eyes.

    The machine outputs red visible laser, which is harmful to eyes.

    Never look straight into handle, this laser irradiates directly into eyes will cause blindness, and that is beyond retrieve. Operators must be especially careful. On account of surfaces of some objects can reflect beam, especially slick metals or glass, don’t put such goods on the path through which laser passes. In another work, don’t let laser irradiates on objects possess reflection capability, for fear that laser reflected or scattered do harm to eyes.



    Protective goggles

    Protective goggles are made to protect users’ eyes from being hurt by this laser. Everyone around the operation locale should wear the protective goggles.

    Security of sufferers

    To ensure the safety of sufferers, please shade sufferers’ eyes properly when facial treatment is being done. During the treatment on eyes, covers that protective goggle must be used.


    Working Principle:

    Laser emitted by the system has a strong penetration ability which allows it to reach the deep layer of dermis. The pigment particles absorb the light energy and explode sharply, burst into the tiny pieces, thus diminish the color density and get rid of it.

    So the appliance can effectively do away with mutant pigmentations and vascular tissue based on undamaged ambient tissue. This is called ‘Selective heat absorption’ principle in medical field.


    Product Features:

    Improve the efficiency and make the best solutions for no burning on the hand-piece at all.

    Long lifetime for Xenon Lamp which is with the imported US technology.

    More stability with the hand-piece structure inside improved.

    Add the infrared Guide light to aim the target tissue correctly.

    Portable design and easy operation can do the touring treatment; lower cost and wider usage can make quick return of investment.

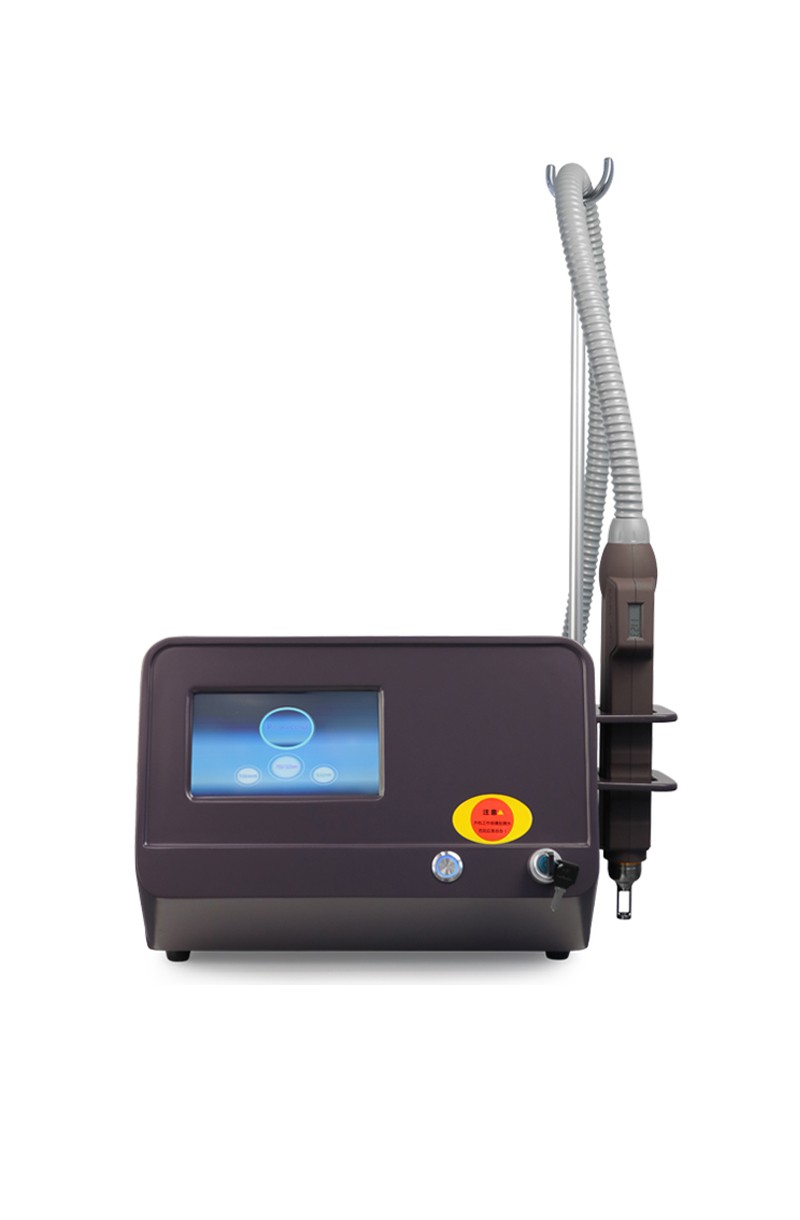

    Laser Tattoo Removal System HL-C13(image 1)

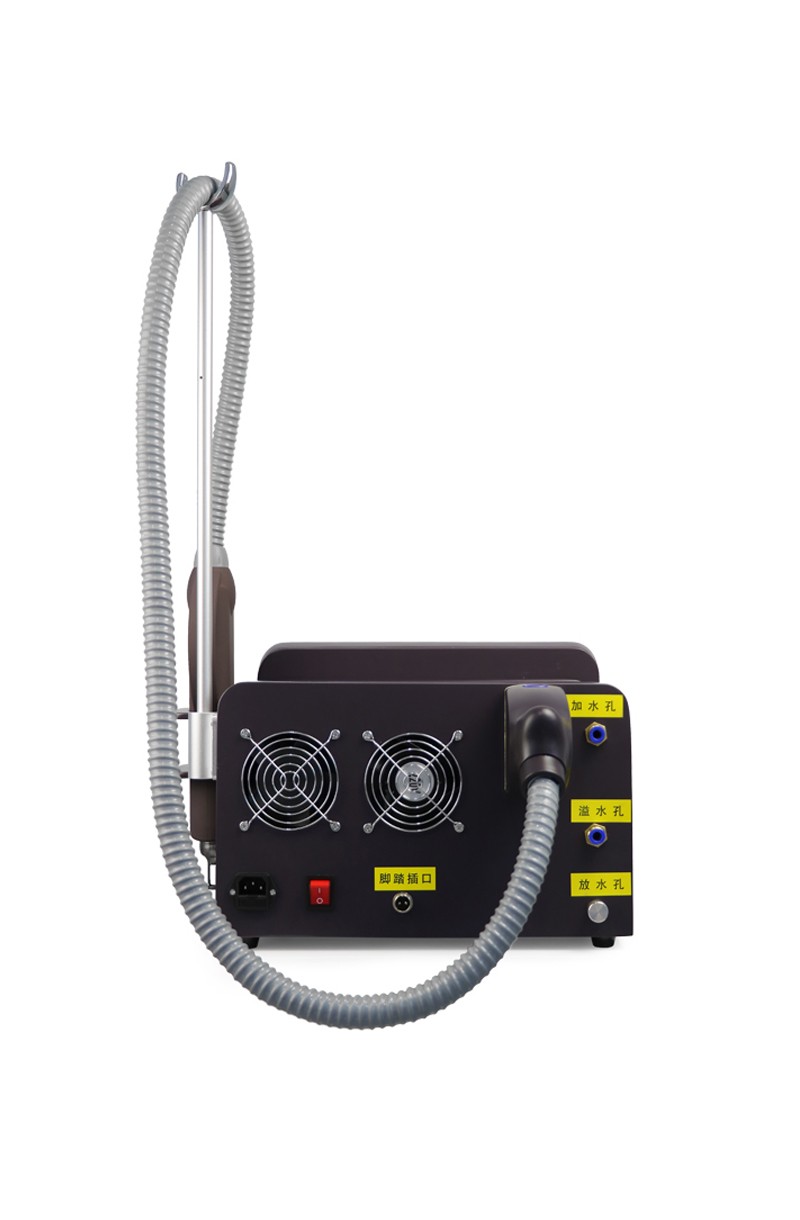

    Laser Tattoo Removal System HL-C13(image 2)

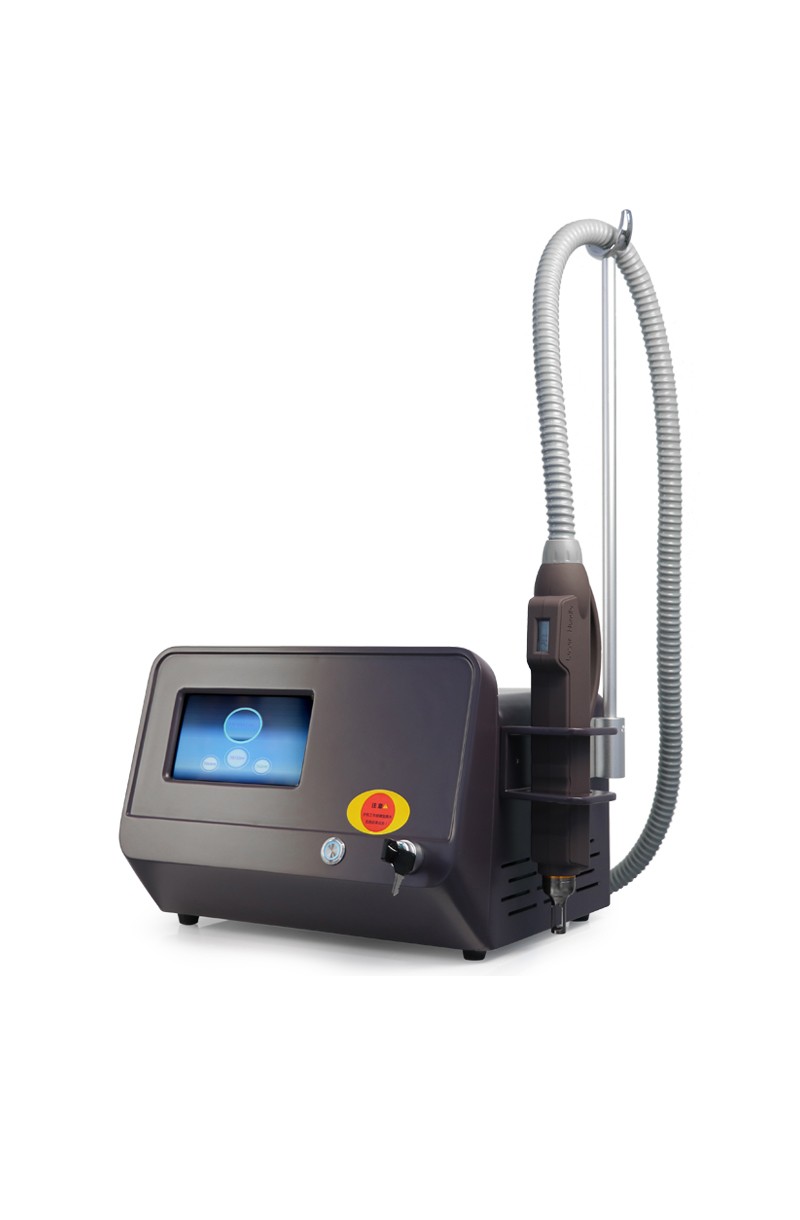

    Laser Tattoo Removal System HL-C13(image 3)

    The process of the installation includes:

    1) Unpacking the device.

    2) Staying the device for one day, in order to avoid destruction by high humidity during long

    3) distant transportation.

    4) Assembly of its components and ensure that all connections are firmly in place.

    5) Fill the water tank with distilled water only.

    6) Connect the power cord and foot switch.

    7) Switch on the device and test all functions / parameters of the system.


    Installation

    1) Connect the hand-piece,make sure the hand-piece connect firmly.

    2) Affuse distilled water, after the water overflow the overflow hole, it’s enough.

    3) make sure the key is at off position, and the stop switch is at up.

    4) connect power cord.

    5) Switch the circuit breaker to the “On” position.

    6) Switch the key to “on” position. At this time water circulation and the cooling system starts automatically.

    7) After 1 minutes, turn off the machine, then affuse water again.

    8) Then turn on the machine again, It means you can fully assemble cooling system with handpiece.

    9) Adjust proper parameter, start treatment.

    10) When replace water

    A. Drain the remaining water which contains in the handle. Pay particular attention as not to spill any water on the electronic terminals. Wipe off any spilled water with a soft absorbent cloth.

    B. Replace water every 2-3 months.

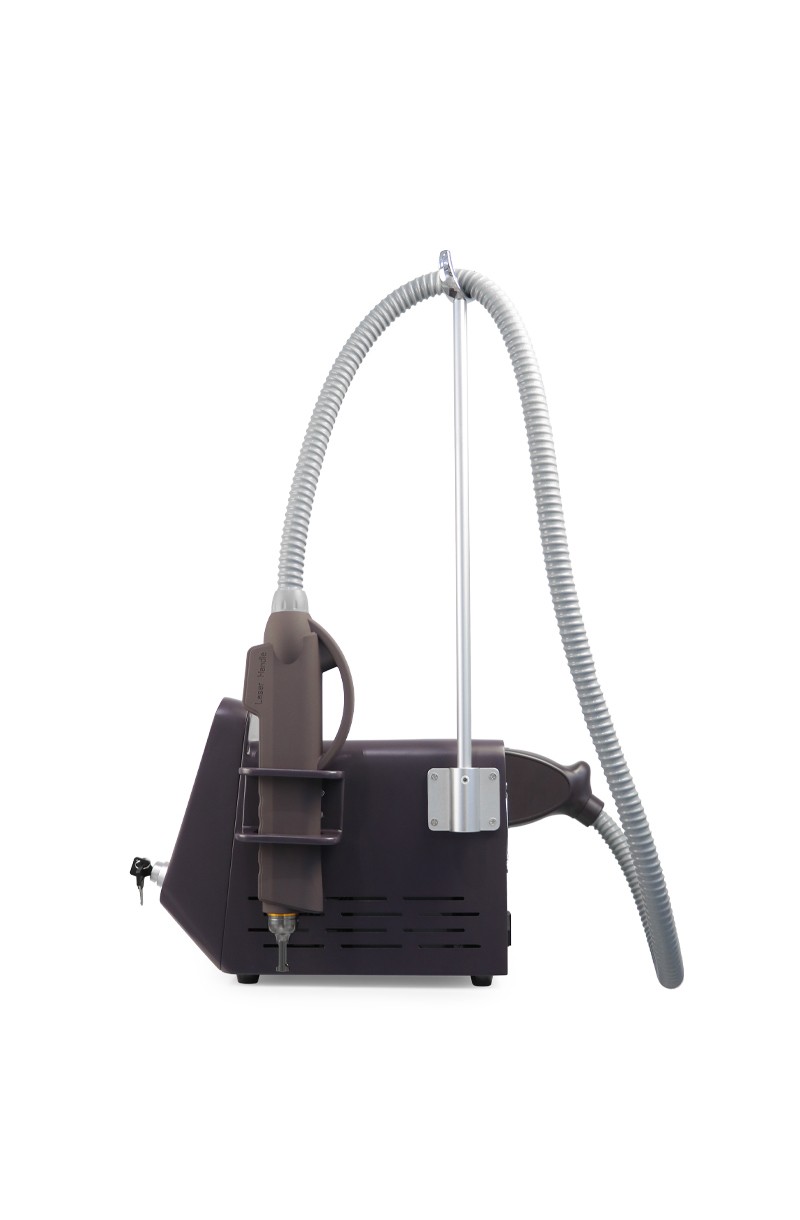

    Laser Tattoo Removal System HL-C13(image 4)



  • Application Range:

    Remove the black &blue pigment on eyebrow, eye line and lip line. Scour off tattoo, freckle, lentigines, old aged marks.

    No harm to the follicles and normal skin, leaving no scar, only to lustrate pigment.

    To lustrate melanin not being eliminated by medicament and other means.

    Be in no need of anesthesia and quick recovery. No negative influence.


  • Laser type

    Emerald laser

    Laser wavelength

    1064nm、532nm、1320nm

    Highest energy

    0.7J/cm2、0.7J/cm2、1.0J/cm2

    Frequency

    1-10HZ

    Voltage power

    AC220V, 50Hz

    Pulse width

    600ps

    Power

    2000W

    Spot diameter

    2-10mm
